TIP

This document is applicable to version 1.5.x, Please use the command ll-cli --version to check your linyaps program version.


Debug App ​

The following tutorial uses the linglong-builder-demo project mentioned in the "Building Tools" section as an example. We put the project in /path/to/project. Make sure to replace the path when referring to this tutorial.

Since the Linglong application runs in a container, we need to use gdbserver to run the application in the container to debug it on the host. So you'll need to install gdbserver first.

We can use the gdbserver provided by the distribution, using apt as an example:

bash
sudo apt install gdbserver gdb -y

Next, refer to the tutorial in "Run compiled App", run bash in the container through the ll-build run command, and run the application to be debugged through gdbserver:

bash
ll-build run --exec /bin/bash

# In the container:
gdbserver:10240 deepin-draw

In the above command, :10240 is any tcp port that is not currently occupied. Then we need to do two more things:

  1. Use gdb outside the container to connect to the gdbserver in the container;
  2. Set the source map path.

Debugging with gdb in terminal ​

  1. Find the location of the executable file executed in the container on the host. For the above project, the file is located in /path/to/project/.linglong-target/overlayfs/up/opt/apps/org.deepin. demo/files/bin/demo.

    For applications installed via ll-cli, the executables are generally located under $LINGLONG_ROOT/layers/[appid]/[version]/[arch]/files/bin.

    Use gdb to load the program outside the container:

    bash
    gdb /path/to/project/.linglong-target/overlayfs/up/opt/apps/org.deepin.demo/files/bin/demo

  2. Use the target command in gdb to connect to the gdbserver as follows:

    bash
    target remote :10240

  3. Enter the following command in gdb to set the path mapping and help gdb to find the corresponding source code, assuming the source code is placed in the Desktop of the host, the command is as follows:

    bash
    set substitute-path /source /path/to/project

Then just use gdb normally.

QtCreator configuration ​

Referring to the above process, we can easily complete the configuration of QtCreator:

Click: Debug > Start Debugging > Connect to the Running Debug Server, and fill in the dialog box:

text
Server port: `10240`

Local executable file: `/path/to/project/.linglong-target/overlayfs/up/opt/apps/org.deepin.demo/files/bin/demo`

Init Commands: `set substitute-path /source /path/to/project`

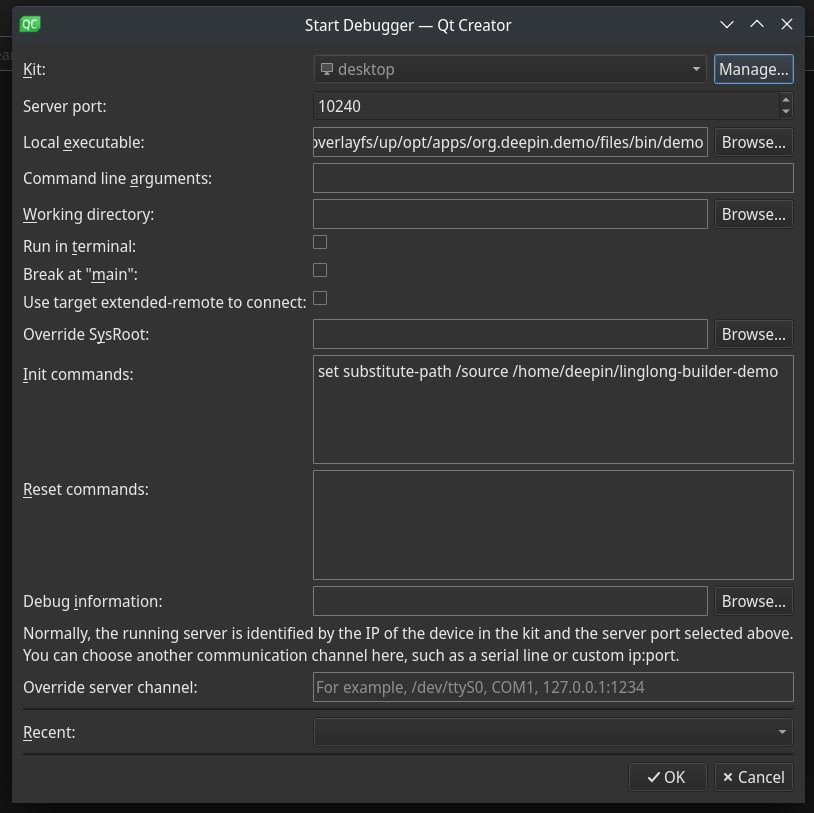

The general configuration is shown in the following figure:

qt-creator

After the configuration is complete, you can use QtCreator to debug normally.
